Defend 1050 (NV1050) Specifications

Defend 1050 (NV1050) Specifications

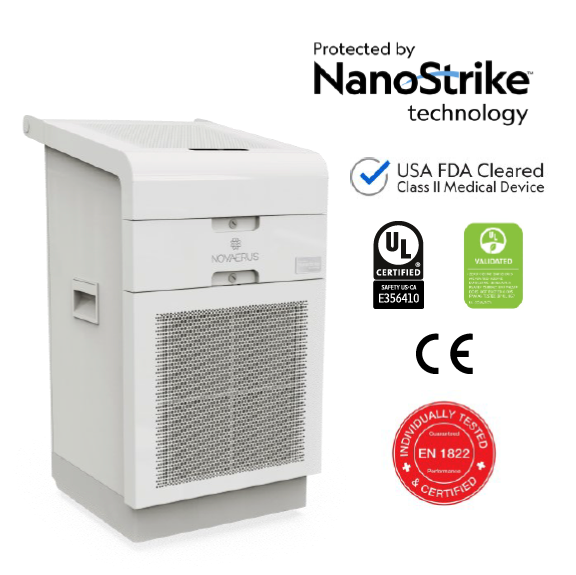

MODEL DEFEND 1050 (NV1050)

Floor standing, 2-wheeled base + handle, 5-speed fan setting, 6-NanoStrike coils with 3 m (9 ft) power cord (minimum length).

CONSTRUCTION + COLOR

Precision-cut fabricated metal casing in a white anti-bacterial powder coat finish.

DIMENSIONS

920 mm (h) x 490 mm (w) x 590 mm (d)

36.2" (h) x 19.3" (w) x 23.2" (d)

WEIGHT

53.8 kg 1 118.6 lbs

ELECTRICAL RATING

Single Phase, 220-240 VAC 1 100-130 VAC, 50-60 Hz Dual Fuse Rated at 250 VAC, 6.3 A, Listed

POWER CONSUMPTION RANGE

^{Power consumption depends on voltage and frequency of network in particular county.}

220-240 VAC model:

Lowest Speed: 60.5 W 78.5 W Highest Speed: 309.7 W - 395.8 W

100-130 VAC model:

Lowest Speed: 43.7 W - 67.2 W

Highest Speed: 238.7 W - 366.1 W

ELECTRICAL CONNECTION

Switched and fused with a grounded, molded and detachable power cord.

OPERATING CONDITIONS

10-35 ^oc 1 50-95 ^o F, 10-75% Relative Humidity

SHIPPING / STORAGE CONDITIONS

5-50 ^oc 1 41-122 ^o F, <95% Relative Humidity

FAN AIR FLOW VOLUME

Speed 1: 181 m ³/h 1 107 CFM

Speed 5: 909 m ³/h 1 533 CFM

NOISE LEVEL

Measured at the unit.

Speed 1: 38 dB

Speed 5: 63 dB

FILTERS

Stage 1 Pre Filter: M5 30/30 filter

Stage 2 HEPA Filter: HEPA 1--113 filter, MGA grade

Stage 3 Carbon Filter: G4 carbon pleated filter

QUALITY & SAFETY

Manufactured under ISO 9001, ISO 14001 & ISO

REGULATORY

FDA K200321.510(k) Class Il Medical Device

IEC 60601-1 & 60601-1-2

IEC 60335-1 & IEC 60335-2-65

CE I Conforms to Low Voltage Directive (LVD)

2014/35/EU

UL 867

CSA C22.2 NO. 18120

UL 2998

CARB

FCC

China Disinfection WS/T 648

South Korea KCC

ISO 146441 Clean Room (Level 8)
