Protect 800 | Protect 900 Specifications

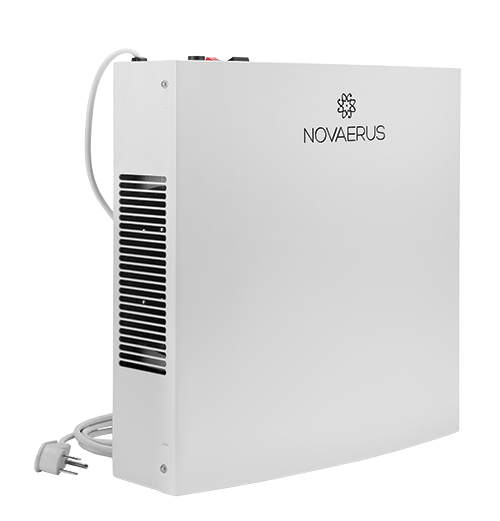

PROTECT 800 (NV800) | PROTECT 900 (NV900) SPECIFICATIONS
Wall mountable, countertop with table stand or mounted on portable high tower, 2-NanoStrikeTM coils, supplied with 1.6 m (5.25 ft) power cord (minimum length).
CONSTRUCTION + COLOR
Precision-cut fabricated metal casing in a white anti-bacterial powder coat finish.
DIMENSIONS
366 mm (h) x 365 mm (w) x 114 mm (d)
14.4" (h) x 14.4" (w) x 4.5" (d)
WEIGHT
4.7 kg 1 10.4 lbs
ELECTRICAL RATING
Single Phase, 220-240 VAC (NV800) 100-130 VAC (NV900), 50-60 1-Az
Fuse Rated at 250 VAC, 3 A, Listed
POWER CONSUMPTION RANGE
Power consumption depends on voltage and frequency of network in particular county.
220-240 VAC model (NV800)
Lowest speed: 10.3 W 12.0 W
Highest speed: 12.3 W 13.8 W
100-130 VAC model (NV900)
Lowest speed: 11.4 W - 15.4 W
Highest speed: 14.1 W 18.3 W
ELECTRICAL CONNECTION
Switched and fused with a grounded, molded power cord.
OPERATING CONDITIONS
10-35 oc 1 50-95 o F, 10-75% Relative Humidity
SHIPPING / STORAGE CONDITIONS
5-50 oc 1 41-122 o F, <95% Relative Humidity
FAN AIR FLOW VOLUME
Speed I: 220 m3/hr - 129 CFM
Speed Il: 260 m 3/hr - 153 CFM
NOISE LEVEL
Noise level measured at the unit.
Speed I: 40 dB
Speed I: 45 dB
QUALITY & SAFETY
Manufactured under ISO 9001, ISO 14001 & ISO
REGULATORY
IEC 60601-1 & 60601-1-2
IEC 60335-1 & IEC 60335-2-65
CE I Conforms to Low Voltage Directive (LVD)
2014/35/EU
UL 867 1 CSA C22.2 NO. 18120
CARB
FCC
China Disinfection WS/T 648
South Korea KCC
