Defend 400 (NV400) Specifications

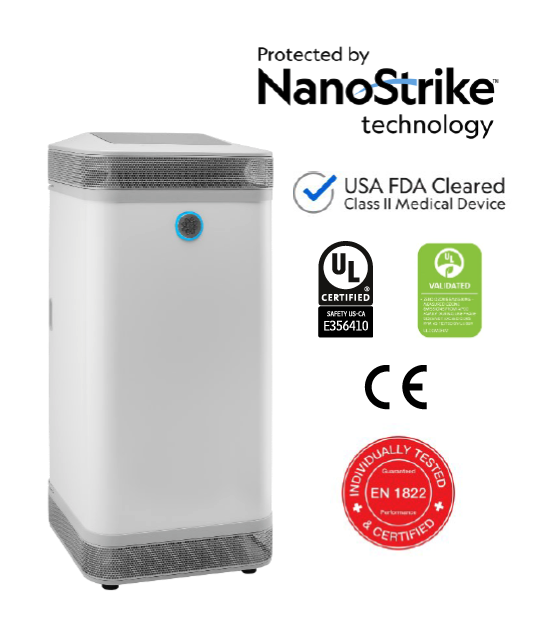

MODEL Defend 400 (NV400)

Floor standing, 2-wheeled base + handle, 5-speed fan setting, 4-NanoStrike coils with 3 m (9 ft) power cord (minimum length).

CONSTRUCTION + COLOR

Grey molded plastics, white aluminum composite, precision-cut stainless steel with anti-microbial powder coat finishes; and touchscreen with self-cleaning screen protector.

DIMENSIONS

855 mm (h) x 380 mm (w) x 380 mm (d)

33.7" (h) x 15.0" (w) x 15.0" (d)

WEIGHT

25.7 kg 1 56.7 lbs

ELECTRICAL RATING

Single Phase, 220-240 VAC 1 100-130 VAC, 50-60 1-Az

Dual Fuse Rated at 250 VAC, 5 A Listed, Anti Surge

POWER CONSUMPTION RANGE*

*Power consumption depends on voltage and frequency of network in particular county.

220-240 VAC model:

17 w 179 w

100-130 VAC model:

24 w 200 w

ELECTRICAL CONNECTION

Switched and fused with a grounded, molded and detachable power cord.

OPERATING CONDITIONS

10-35 ^oc 1 50-95 ^o F, 10-75% Relative Humidity

SHIPPING / STORAGE CONDITIONS

5-50 ^oc 1 41-122 ^o F, <95% Relative Humidity

FAN AIR FLOW VOLUME

Speed 1: 80 m³/h 1 47 CFM speed 5: 380 m ³/h 1 224 CFM

NOISE LEVEL*

* Measured at the unit.

Speed 1: 38 dB

Speed 5: 63 dB

FILTERS

Stage 1 Pre Filter: M5 30/30 filter

Stage 2 HEPA Filter: HEPA H13 filter, MGA grade

Stage 3 Carbon Filter: G4 carbon pleated filter

QUALITY & SAFETY

Manufactured under ISO 9001

REGULATORY

FDA K200321.510(k) class Il Medical Device

IEC 60601-1 & 60601-1-2

IEC 60335-1 & IEC 60335-2-65

CE I Conforms to Low Voltage Directive (LVD)

2014/35/EU UL 867

UL 2998 1 CARB

FCC
