Protect 200 (NV200) Specifications

Protect 200 (NV200) Specifications

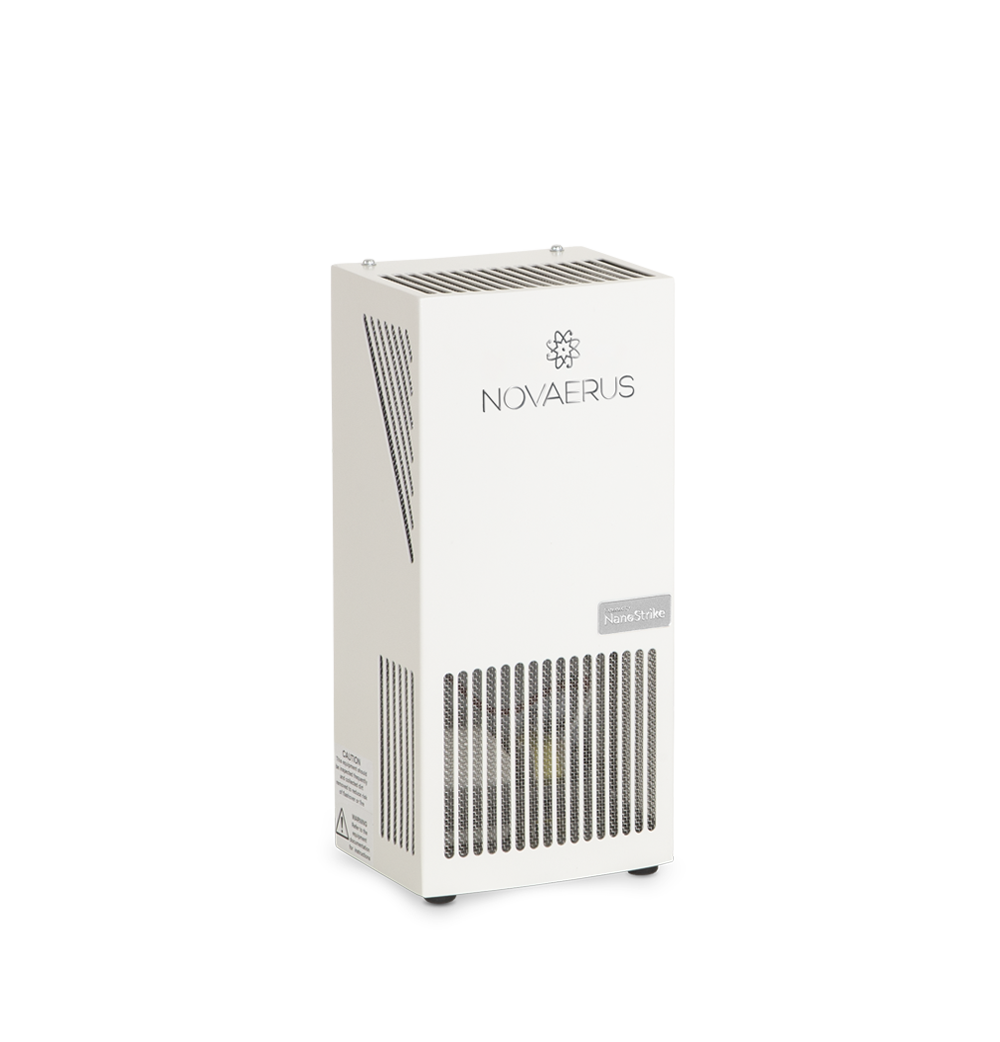

PROTECT 200 (NV200)

Wall mountable or countertop unit, 1 NanoStrike coil, supplied with 1.6 m (5.25 ft) power cord (minimum length).

CONSTRUCTION + COLOR

Precision-cut fabricated metal casing in a white anti-bacterial powder coat finish.

DIMENSIONS

283 mm (h) x 132 mm (w) x 108 mm (d)

11.1" (h) x 5.2" (w) x 4.3" (d)

WEIGHT

3.4 kg

7.5 lbs

ELECTRICAL RATING

Single Phase, 220-240 VAC 1 100-130 VAC, 50-60 1-Az

Fuse Rated at 250 VAC, 3 A, Listed

POWER CONSUMPTION RANGE*

220-240 VAC model: 127 w 18.3 w

100-130 VAC model: 12.9 w 21.8 w

^* Power consumption depends on voltage and frequency of network in particular county.

ELECTRICAL CONNECTION

Switched and fused with a grounded, molded power cord.

OPERATING CONDITIONS

10-35 ^oc 1 50-95 ^oF, 10-75% Relative Humidity

SHIPPING / STORAGE CONDITIONS

5-50 ^oc 1 41-122 ^o F, <95% Relative Humidity

FAN AIR FLOW VOLUME

80 m³/hr 1 47 CFM

NOISE LEVEL* 35 dB

* Measured at the unit.

QUALITY & SAFETY

Manufactured under ISO 9001, ISO 14001 & ISO

REGULATORY

IEC 60601-1 & 60601-1-2

IEC 60335-1 & IEC 60335-2-65

CE I Conforms to Low Voltage Directive (LVD)

2014/35/EU

UL 867 1 CSA C22.2 NO. 18120

CARB

FCC

China Disinfection WS/T 648

South Korea KCC
