PlasmaPURE AutoClean 1500 Submittal

PLASMAPURE AUTOCLEAN 1500 SUBMITTAL

The PlasmaPURE AutoClean 1500 is a self-cleaning needlepoint ionizer that produces positive and negative ions that neutralize harmful pollutants and odors in the home.

This compact unit automatically removes dust and dirt build-up on the needles eliminating the need for maintenance. It can be easily mounted at the fan inlet of almost any air handling system including residential air conditioners, furnaces, mini-splits, fan coil units and VRF systems.

Unit will accept 12V DC or 24V AC. The AutoClean 1500 is UL 2998 validated for zero ozone emissions.

SPECIFICATIONS:

Airflow Capacity: . . . . . . . . . . . . . . . . . . . . . . . . .6,000 CFM

Pressure Drop: . . . . . . . . . . . . . . . . . . . . . . . . . . . Negligible

Housing Material: . . . . . . . . . . . . . . .PC-ABS Plastic Blend

Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 lbs

Maximum Operating Temperature: . . . . . . . . . .131°F (55°C)

Electrical:

Input Voltages: . . . . . . . . . . . . . . . . . . . . . 12V DC / 24V AC

Input Current: . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.2 amps

Frequency: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 hertz

Ionization Output: . . . . . . . . . . . . . . . . . .1012 ions/second

Mode of Operation: . . . . . . . . . . . . . . . . Needlepoint Type

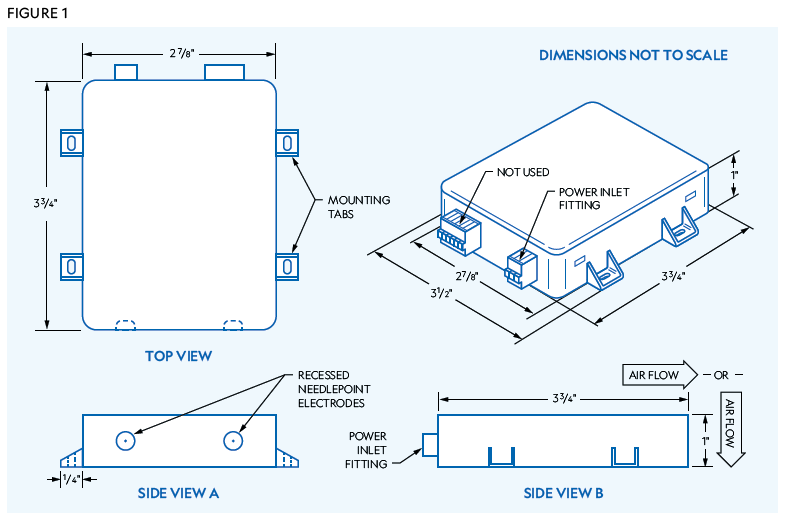

DIMENSIONS: See Figure 1

COMPLIANCE: UL 867, CSA C22.2# 187, UL 2998, CARB, UL 2043, ISO 16000, RoHS2

FEATURES:

• Inactivates airborne pollutants such as viruses, bacteria, fungi and mold spores

• Self-cleaning once per day

• Factory programmable to change cleaning frequency

• Discharges static electricity and electrostatic build-up
