Plasma Air 600 Series Submittal

600 SERIES SUBMITTAL

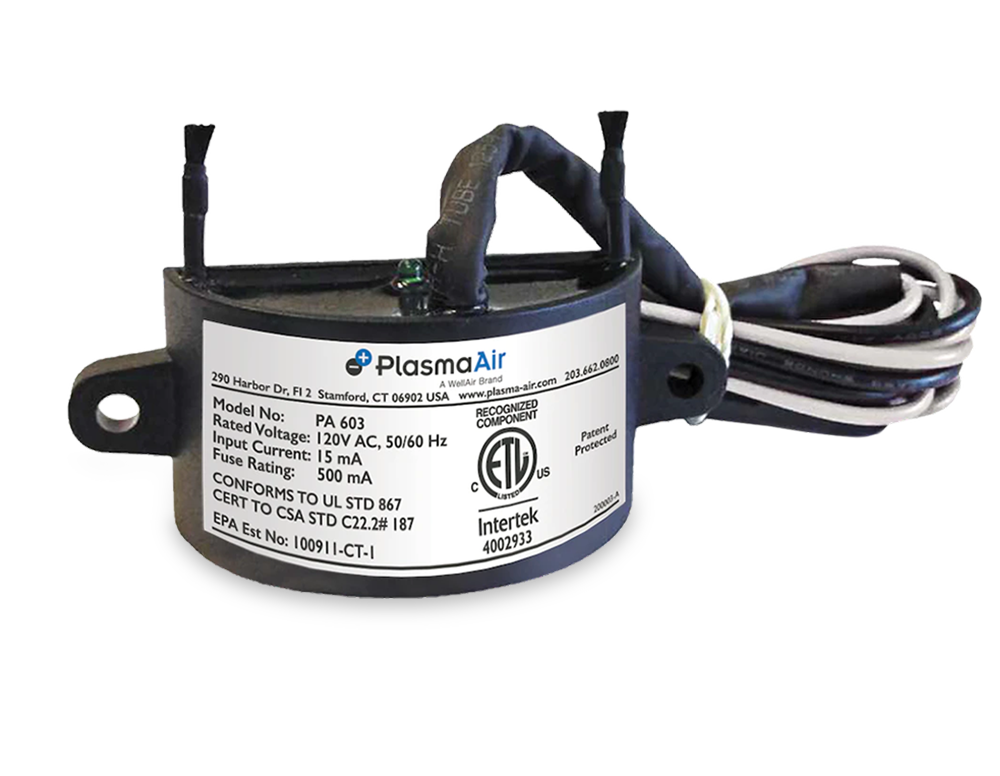

The Plasma Air 600 Series Models 601 / 602 / 603 / 604 brush needlepoint ionizers are rated for 2400 CFM and produce positive and negative ions neutralizing harmful pathogens, pollutants and odors. This self-balancing ionizer is typically installed at the fan inlet of fan coil units, VRF cassettes, ductless splits, WSHP etc. These ionizers are self contained in a potted ABS box with a molded flange and mounting holes and is protected with an inline 500mA glass cartridge fuse. The 600 series is UL 2998 validated for zero ozone emissions.

SPECIFICATIONS:

Airflow Capacity:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,400 CFM

Pressure Drop: . . . . . . . . . . . . . . . . . . . . . . . . . .   Less than 0.01 In. WG

Housing Material: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ABS

Weight:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 lbs

Maximum Operating Temperature: . . . . . . . . . . . . . . . . 200 °F (93 °C)

Electrical:

Voltage Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  . . . . . 12V DC (601)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V AC (602)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 120V AC (603)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208-240V AC (604)

Power Consumption: . . . . . . . . . . . . . . . . . . . . . Less than 1 watt

Frequency: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50/60 hertz

Over Current Protection: . . . . . . 500mA Glass Cartridge Fuse

Lead Wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50"(L)

Ionization Type:

Mode of Operation: . . . . . . . . . . . . . . . . . . . . . . . . . . . Needlepoint

Needle Configuration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Brush

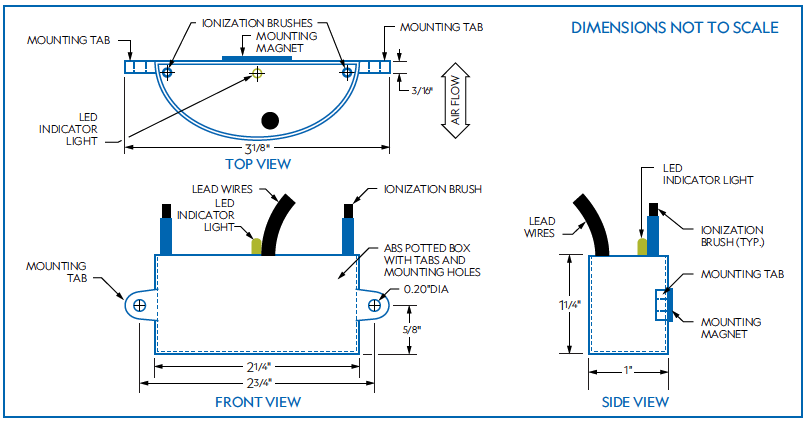

DIMENSIONS:

APPROVALS: UL 2998, Intertek/ETL Standard UL 867

ORDERING NOMENCLATURE:

60X

6 = Plasma Air PA600 Series

0 = Placeholder, non BAS

X =

• 1 = 12V DC
• 2 = 24V AC
• 3 = 120V AC
• 4 = 208-240V AC
