AutoClean 1560 Submittal

AUTOCLEAN 1560 SUBMITTAL

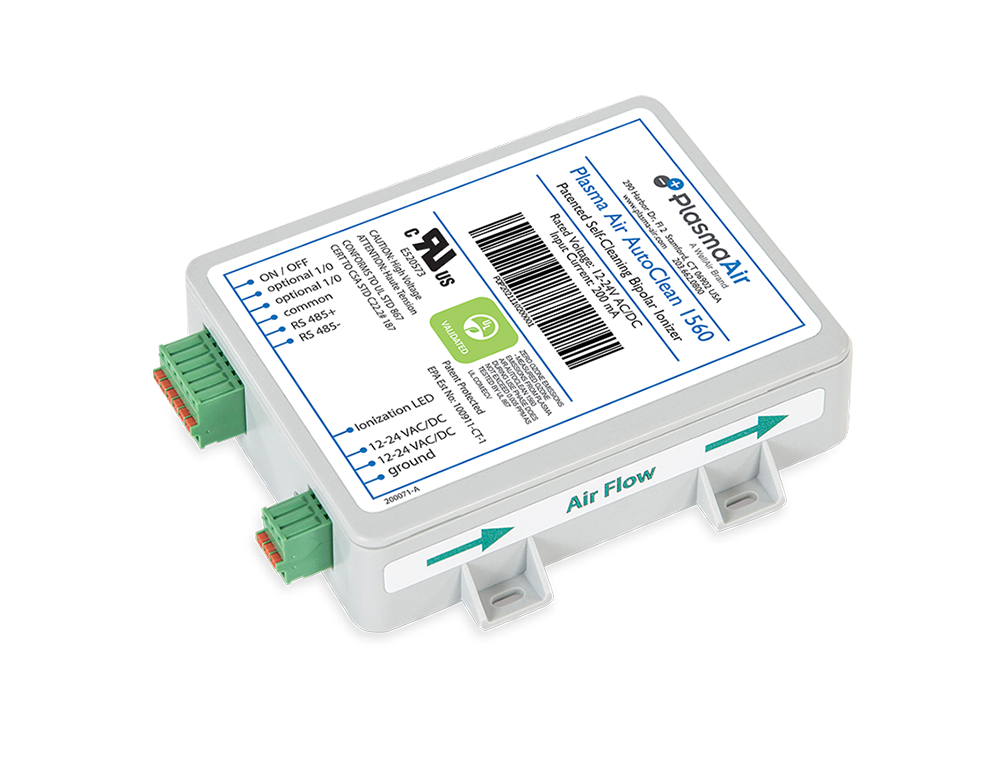

The Plasma Air AutoClean 1560 is an automatic cleaning needlepoint ionizer producing positive and negative ions that neutralize harmful pollutants and odors in the occupied space. This compact unit automatically removes dust and dirt build-up on the emitters eliminating the need for any maintenance. It can be easily mounted at the fan inlet of any air handling system, including RTU's, ptacs, mini-splits, fan coil units and VRF systems. Unit will accept 12-24 VAC/DC. The AutoClean 1560 is UL 2998 validated for zero ozone emissions.

SPECIFICATIONS:

Airflow Capacity: . . . . . . . . . . . . . . . . . . . . . . . 6,000 CFM

Pressure Drop: . . . . . . . . . . . . . . . . . . . . . . . . . Negligible

Housing Material: . . . . . . . . . . . . . .PC-ABS Plastic Blend

Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 lbs

Maximum Operating Temperature: . . . . .131º F (55ºC)

Electrical:

• Input Voltages: . . . . . . . . . . . . . . . . . . . 12-24 VAC/DC
• Input Current: . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 amps
• Frequency: . . . . . . . . . . . . . . . . . . . . . . . . . .50/60 hertz

Ionization Output: . . . . . . . . . . . . . . . . . . 10 ions/second

Mode of Operation: . . . . . . . . . . . . . . Needlepoint Type

Plasma Air AutoClean 1560 IONIZATION PRODUCT SUBMITTAL

DIMENSIONS: See Figure 1

FEATURES:

• Inactivates airborne pollutants such as viruses, bacteria, fungi and mold spores

• Factory programmed for auto-cleaning once per day and on ionizer unit start up

• Provides BMS status output, BMS Cleaning Cycle command

input and an BMS On/O  command input. See IOM for wiring diagrams.

COMPLIANCE AND CERTIFICATIONS:

UL 867, CSA C22.2# 187, UL 2998, UL 2043, ISO 16000, CARB, RoHS2

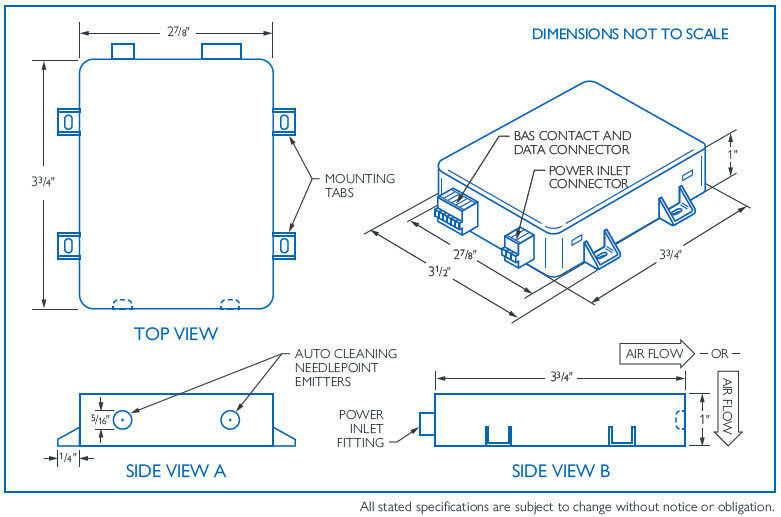

Figure 1
