PlasmaPURE 600 Submittal

PLASMAPURE 600 SUBMITTAL

The PlasmaPURE 600 Series Models 601 / 602 / 603 / 604 brush needlepoint ionizers are rated for 2400 CFM and  produce positive and negative ions neutralizing harmful pathogens, pollutants and odors.

This self-balancing ionizer is typically installed at the fan inlet of fan coil units, VRF cassettes, ductless splits, WSHP etc.

These ionizers are self-contained in a potted ABS box with a molded flange and mounting holes and is protected with an inline 500mA glass cartridge fuse. The 600 Series is UL2998 validated for zero ozone emissions.

SPECIFICATIONS:

Airflow Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,400 CFM

Pressure Drop: . . . . . . . . . . . . . . . . . . . . . . Less than 0.01 In. WG

Housing Material: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ABS

Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 lbs

Maximum Operating Temperature: . . . . . . . . . . . . . 200°F (93°C)

Electrical:

Voltage Input: . . . . . . . . . . . . . . . . . . . . . . . . ..  . . . .12V DC (601)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  . . . . 24V AC (602)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..  . . . . 120V AC (603)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 208-240V AC (604)

Power Consumption: . . . . . . . . . . . . . . . . . . . . Less than 1 watt

Frequency: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50/60 hertz

Over Current Protection: . . . . . . . . 500mA Glass Cartridge Fuse

Lead Wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50"(L)

Ionization Output:

Mode of Operation: . . . . . . . . . . . . . . . . . . . . . . Needlepoint Type

Needle Configuration: . . . . . . . . . . . . . . . . . . . . . . . Brush Type

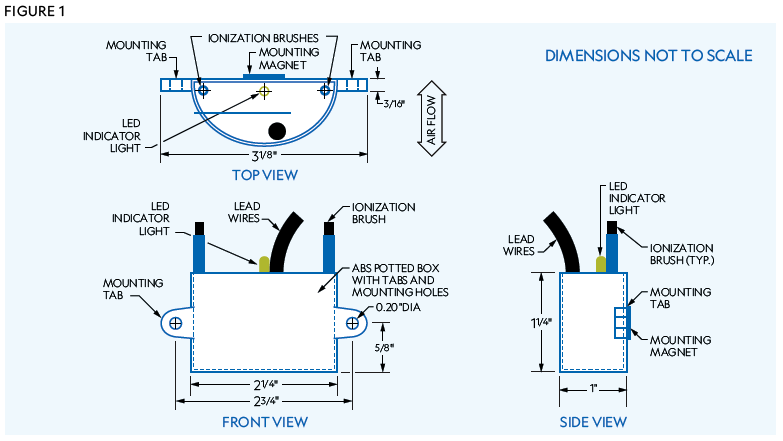

DIMENSIONS: See Figure 1

COMPLIANCE: UL 867, CSA C22.2# 187, UL 2998, UL 2043, CARB, ISO 16000

ORDERING NOMENCLATURE:

60X

1 = 12V DC

2 = 24V AC

3 = 120V AC

4 = 208-240V AC
