PLASMA BAR SUBMITTAL

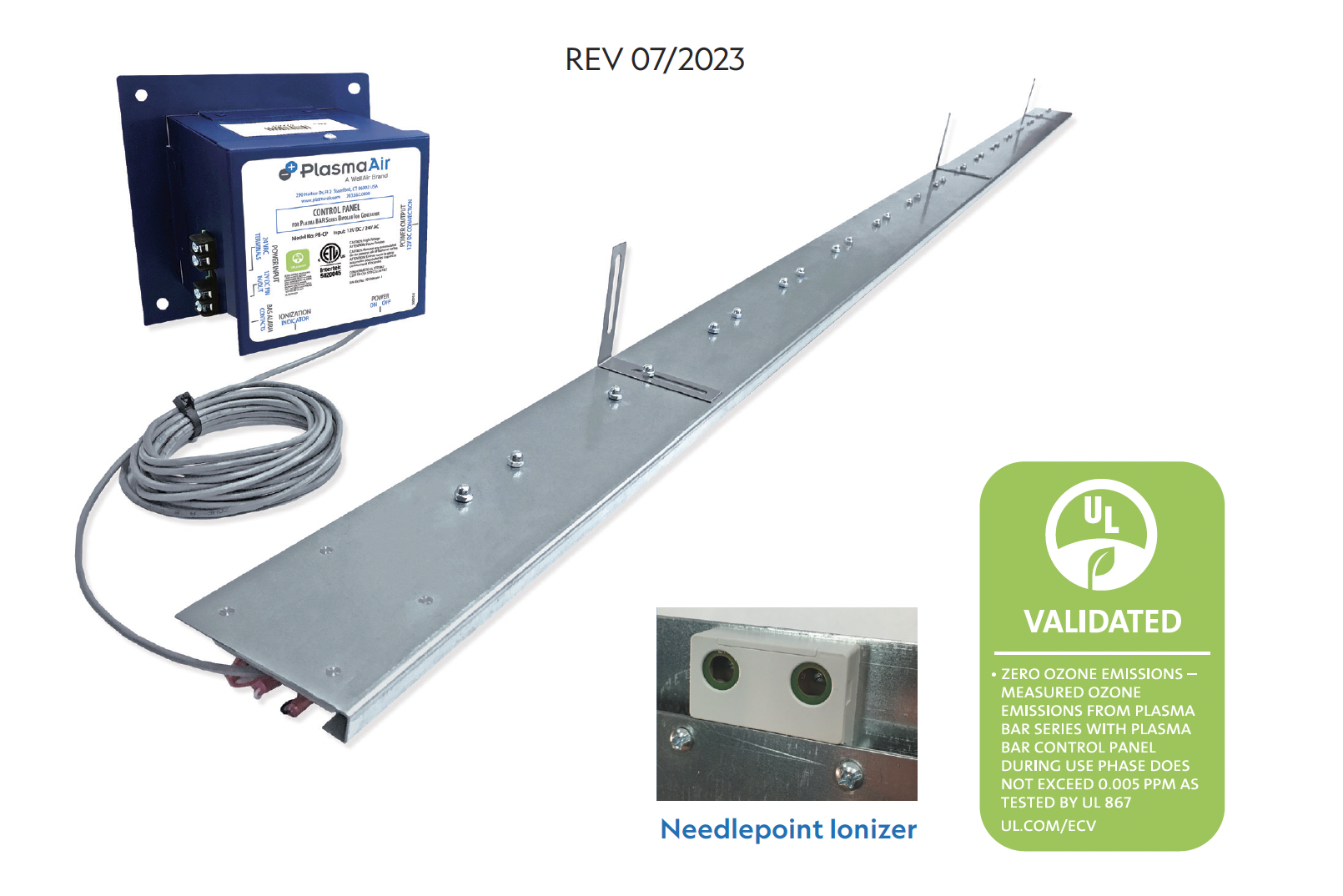

The Plasma BAR needlepoint ionizers produce positive and negative ions neutralizing harmful micro-organisms, pollutants and odors and are arranged in a factory assembled low profile design for ease of installation.

They are typically installed on upstream side of cooling coil but can be located downstream near supply fan section with a contractor provided support system. To ensure optimal performance the Plasma BAR series require minimal annual maintenance and cleaning.

This unit is covered under UL 2998 for zero ozone emissions of less than 5 ppb.

SPECIFICATION:

Housing Material: . . . . . . . . . . . . . . . . 18 Gauge Galvanized Steel

Wiring Harness: . . . . . . . . . . . . . . . . . . . . . 22 Gauge Plenum Rated

Maximum Operating Temperature:. . . . . . . . . . . . . . 158°F (70°C)

Mode of Operation:. . . . . . . . . . . . . . . . . . . . . . Needlepoint type

Needle Configuration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . Recessed

Mounting: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Top angle brackets

Pressure Drop: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <0.05" W.G.

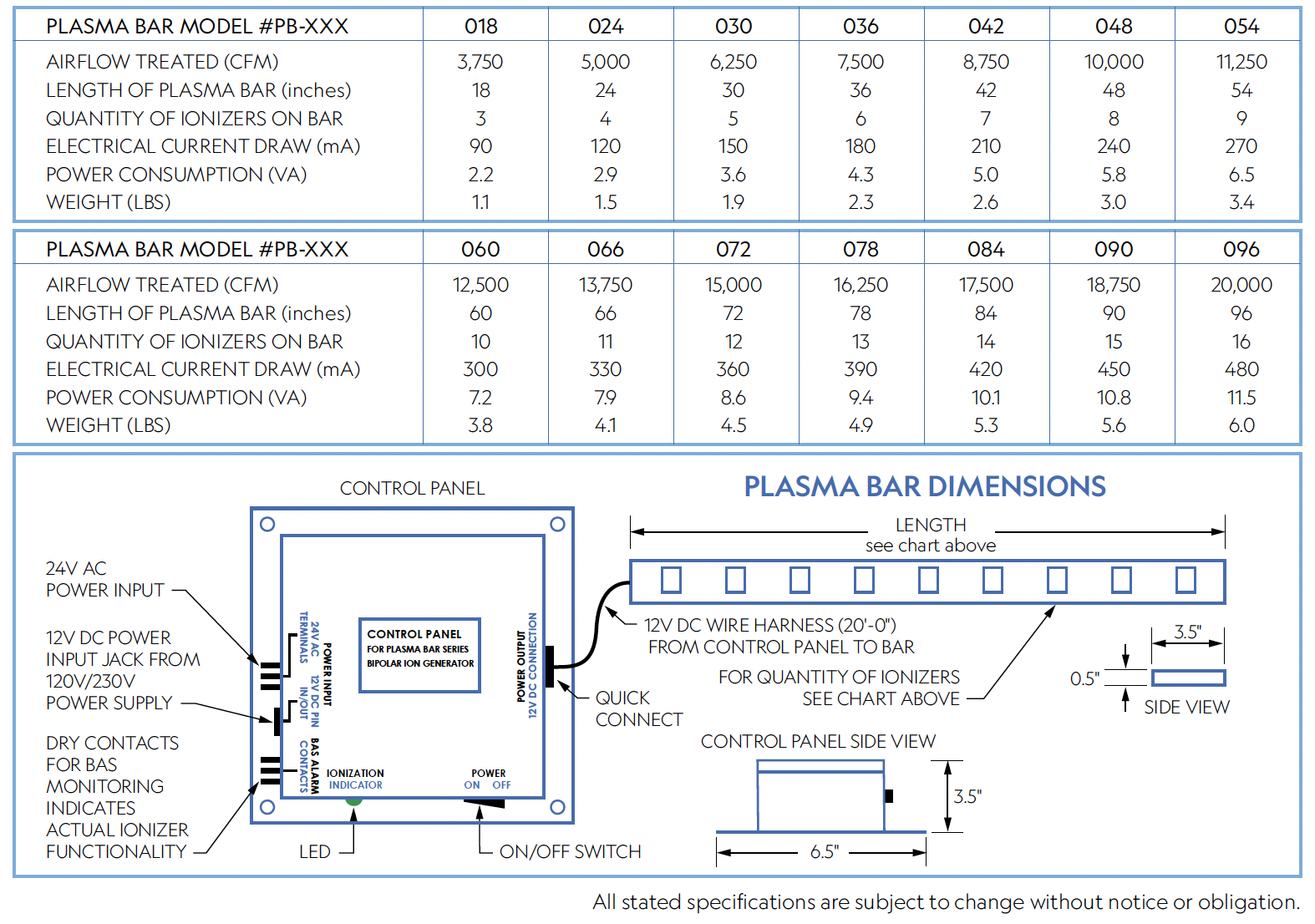

CONTROL PANEL (CP):

Dimensions:. . . . . . . . . . . . . . . . . . . . . . . . 6.5" (l) × 6.5" (w) × 3.5" (d)

Direct Input Voltage: . . . . . . . . . . . . . . . . . . . . . . 12V DC or 24V AC

Input Voltage requiring power supply:. . . . . . . . . 120/230V AC

AC Frequency: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50/60 Hz

Over-current Protection: . . . . . . . Automatic Reset 1 Amp fuse

Length of wiring harness from CP to BAR: . . . . . . . . . . . . 20' – 0"

Interconnecting Voltage to BAR:. . . . . . . . . . . . . . . . . . . . . 12V DC

Environmental Service: . . . . . . . . . . . . . . . . . . . . . . . . . . Indoor only

COMPLIANCE AND CERTIFICATIONS: UL 867, CSA C22.2# 187, UL 2998, CARB, UL 2043, ISO 16000
